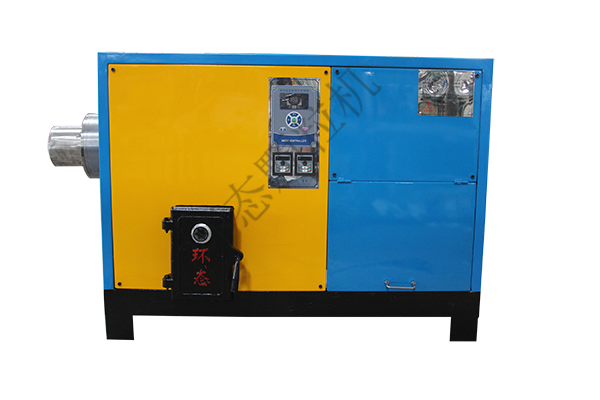

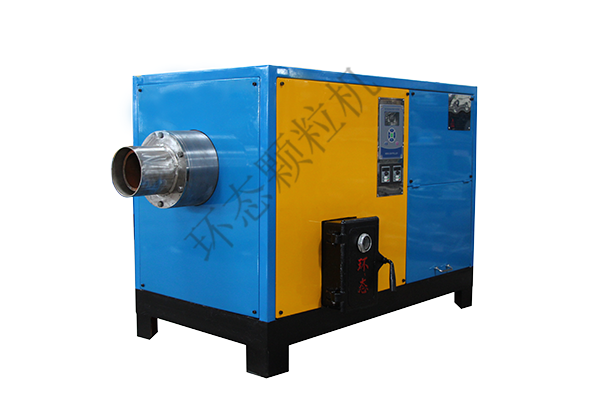

Biomass Burner

1、 Product Features

1. Using biomass pellets as fuel results in low emissions of pollutants during combustion.

2. Adopting semi gasification suspension combustion technology, the burn off rate is high.

3. Adopting a tangential swirl air distribution design, the combustion efficiency is high.

4. Micro positive pressure operation, using spiral feeding to avoid fuel backfire.

5. Easy installation, automatic feeding, simple operation, and low workload.

6. Adopting renewable biomass pellets advocated by the country as fuel, it is smoke-free, flame clean, and has low ash content.

7. Adopting an integrated design, the structure is compact, the site occupation is small, and the appearance is beautiful and generous.

2、 Product specifications

		BCM-5	BCM-10	BCM-20	BCM-30	BCM-40	BCM-60	BCM-80	BCM-100	BCM-150	BCM-200	BCM-300	BCM-400
		50000kcal	100000kcal	200000kcal	300000kcal	400000kcal	600000kcal	800000kcal	1000000kcal	1500000kcal	2000000kcal	3000000kcal	400000kcal
Calorific value	104*Kcal/h	5	10	20	30	40	60	80	100	150	200	300	400
Voltage	V	220	220	220	380	380	380	380	380	380	380	380	380
Power	kW	0.75	0.75	0.75	1.5	1.5	2.2	2.2	2.2	3	3	5.5	5.5
Diameter	mm	90	100	150	180	210	280	300	310	310	400	400	500
minimum height	mm	400	550	600	700	750	850	900	1100	1300	1400	1500	1500
Weight	kg	≤300	≤400	≤450	≤500	≤600	≤800	≤1000	≤1200	≤2000	≤2200	≤2500	≤3000
Energy consumption	kg/h	12	24	48	72	96	144	192	240	360	480	720	960
